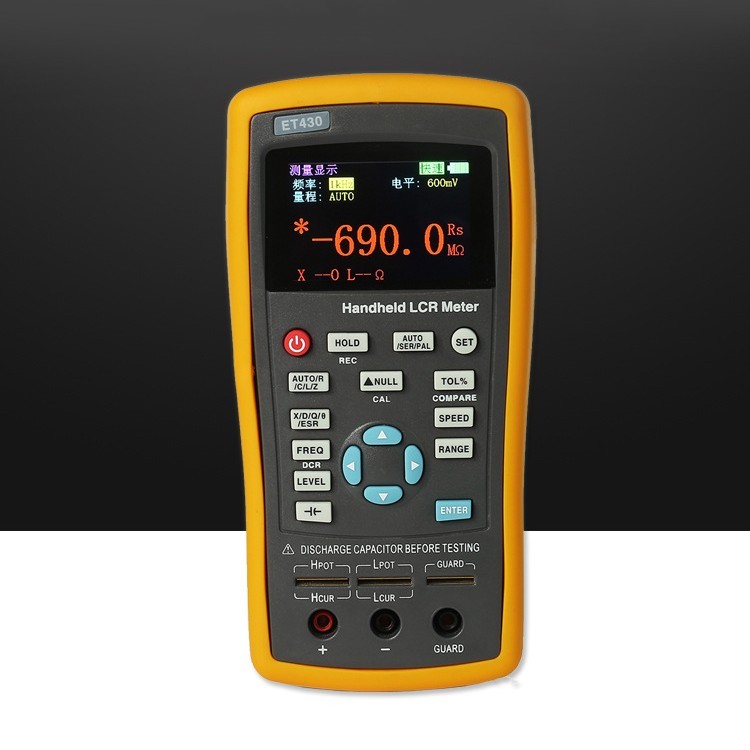

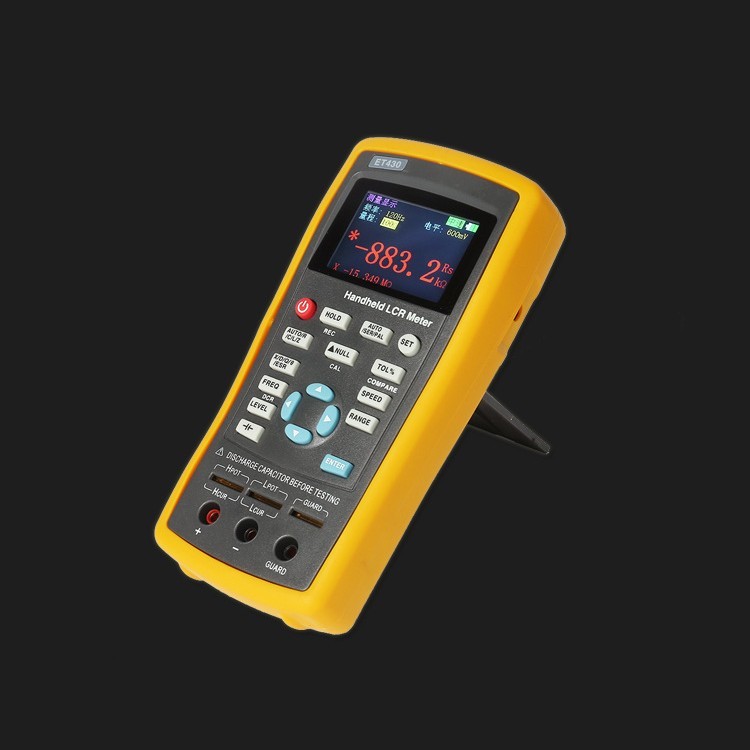

ET432 Handheld LCR Digital Bridge

Product information:

Type: Handheld bridge
Model: ET430 ET431 ET432 ET433
Resistance measurement range: 2000.00M Ω (Ω)
Capacitance measurement range: 20.000mF (Pf)
Accuracy level: 0.2%
Weight: 0.5 (kg)
Specification: ET431 100Hz~10kHZ 4 test frequency points, ET430B 100Hz~10kHZ 4 test frequency points, ET430 100Hz~100kHz 4 test frequency points, ET432 100Hz~100kHz 4 test frequency points, ET433 100Hz~100kHz 1Hz step, Kelvin test clamp
Display screen: 2.8 inch TFT LCD screen
Display digit: main parameter: 5 digits, sub parameter: 5 digits
Measuring parameters: main parameter: L/C/R/Z, sub parameter: X/D/Q/ θ / ESR
Calibration function: open circuit calibration, short circuit calibration
Filtering function: The filtering limit range can be set to 1% – 50%, with fixed points of 1%, 5%, 10%, and 20%
Deviation measurement: used to compare the percentage deviation between the component and the set nominal value and display it
Other: Adjust backlight brightness, set automatic shutdown time, selectable in Chinese and English, USB Device communication

Packing list:

Instrument+color box+USB data cable+manual+plug+short circuit piece+crocodile test clip+CD+certificate of conformity
