Digital Ammeter AC Dynamometer

Product information:

1. An energy meter is a monitoring and testing instrument that determines the power consumption and cost of connecting devices.
2. Measure voltage, frequency, current, power factor, wattage, minimum and maximum power, record cumulative kilowatt hours, time, date, and electricity bills.
Specifications:
Model: Kwe PMB 05
Working voltage: 230 V 50 Hz for EU/UK/AU plugs, 120 V 60 Hz for US plugs
Working current: maximum 16A
Wide voltage range: EU/UK/AU plug 230 V-250 V, US plug 110 V~130 V.
Timing display range: 0 seconds to 9999 days
Watt display (Watt): 0W-3680 W
Voltage display range: 0V-9999V
Current Display (AMPS): 0.0-16.0A
Frequency display: 0 HZ-9999 Hz
Minimum watt display range: 0.0W-3680 W
Maximum wattage display range: 0.0W-3680 W
Price display range: 0.000KWH-99.99KWH
Total kilowatt hours and cost display: 0.000KWH-999KWH
DIY supplies: electric
Color: Blue
Model: 62X76X129mm

Features:
1. A large and clear LCD display for easy reading.
2. Seven display modes, press the “Function” button to transfer.
3. Overload warning displayed on the LCD.
4. Reset the abnormal display or no response of the button.
5. Built in 3.6V rechargeable battery (NI-MH) to store power and save settings.

Packing list:

1 * Plug in electricity meter (install plug type according to your order)
1 * English Teaching Manual

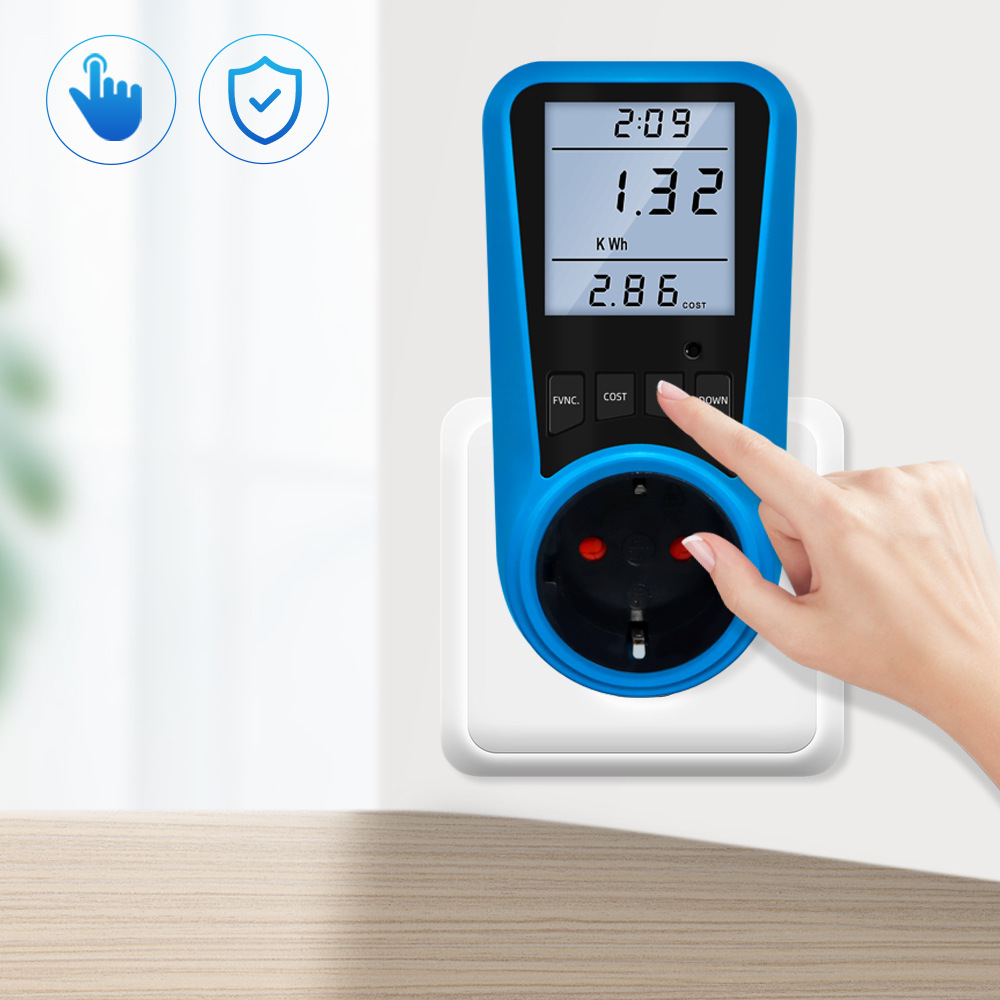

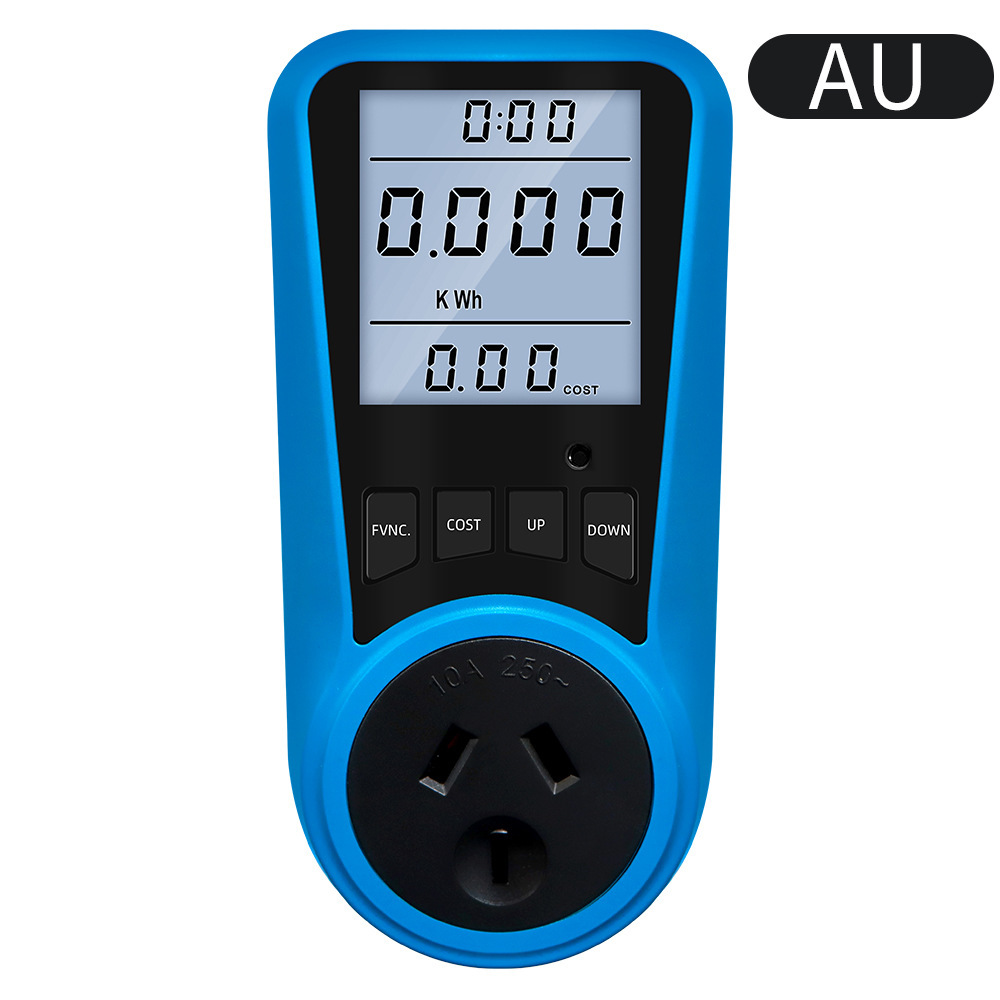

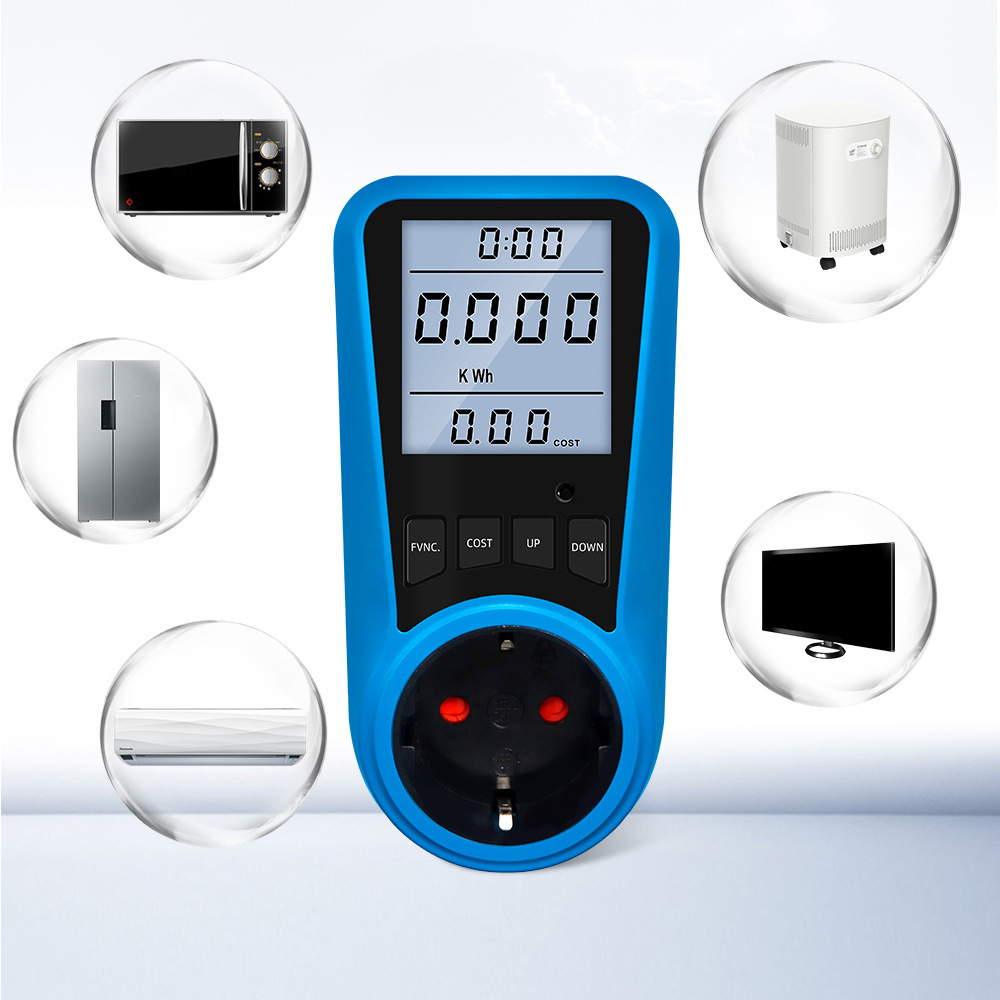

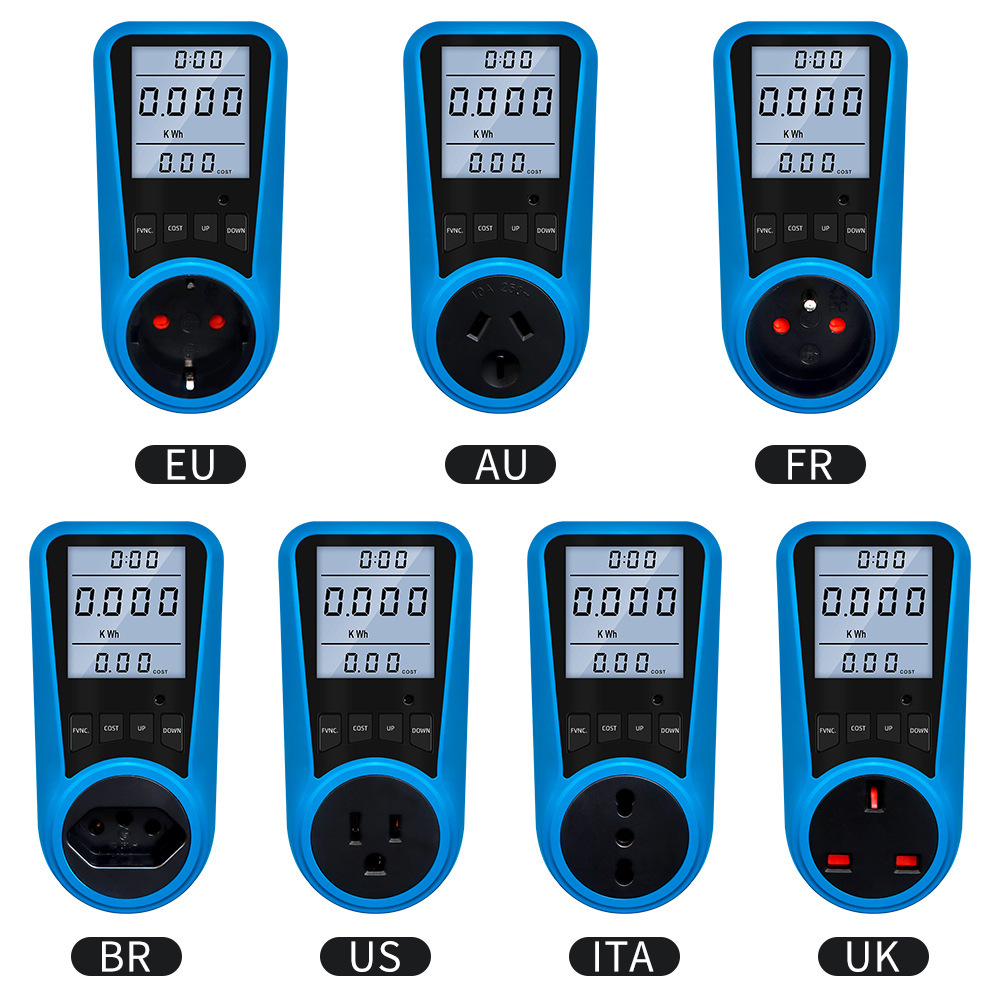

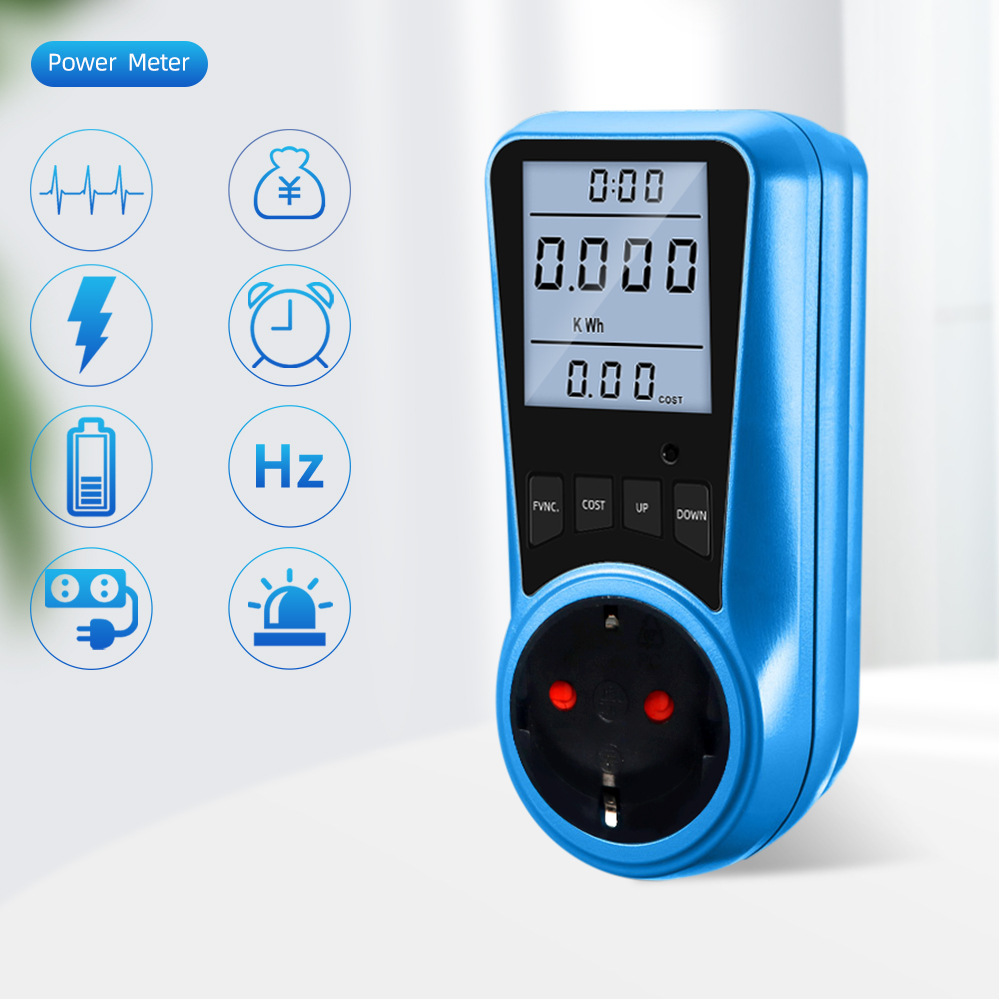

Product Image:
